Humphree: Active Fin Stabilisers

Call for Price

Humphree DC electric All Speed Stabilising fins brings state of the art technology with fast acting brushless electric servo units.

Brand

Fin size (m²)

, ,

Model

Humphree All Speed Stabilisation
Humphree DC electric All Speed Stabilising fins brings state of the art technology with fast acting brushless electric servo units. Powered by 24 V DC motors with rotary drive it gives you possibility to have full comfort without the need of genset running or hydraulic systems. Humphree stabilisers provide zero speed (at anchor or drifting) to full vessel speed stabilisation quickly and quietly.

Innovative Fin Design
The new Humphree fin design has its upper edge made solid, another unique Humphree innovation. The common need to cut the fin to avoid touching the hull is now very easy as no lamination is required. Simply cut the thin solid part of the fin to required shape and it is ready to be installed. It is further possible to reach a better tolerance of the modification compared to the traditional cutting/fiberglass work.

Combining the Humphree fin system with our interceptors and you have a full stabilisation system for roll, pitch and yaw motions. For best control and lowest fuel burn.

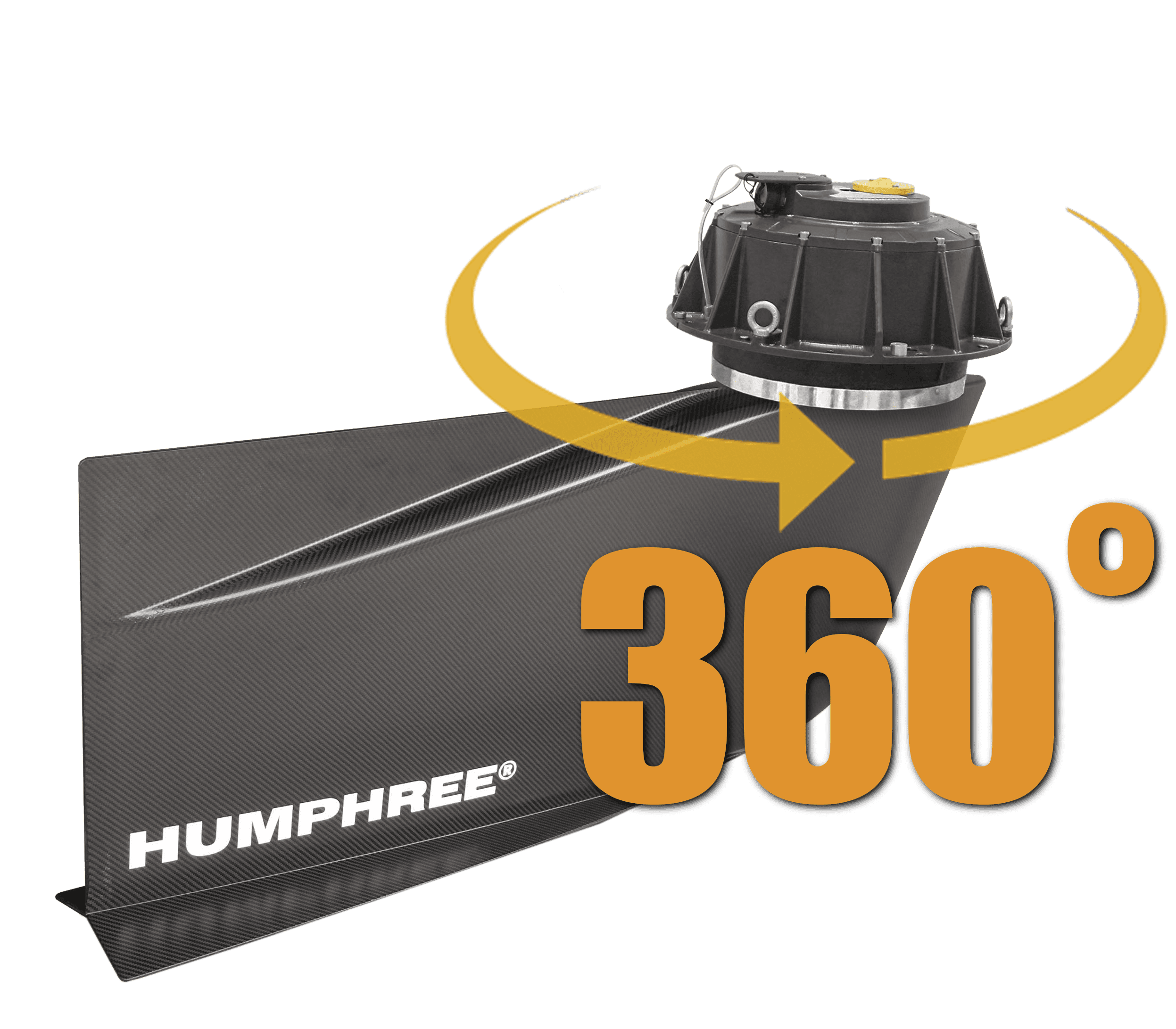

360° Rotation
Another unique Humphree stabiliser function is the 360° fin rotation that allows the Humphree fins to rotate 180° and gently pull the anchor when anchored at the bow. This minimises the so called anchor walk and will keep the bow against the wind to a noticeable extent reducing waves coming from the side.

Compact Size & Low Weight
Sturdy and compact with unbeatably low weight. A depth of only 310mm from outside hull. Humphree All Speed Fins can easily be retrofit installed where other options are too big.

Flange Mount
The unique fin flange mount design minimises the damages in case of grounding and makes installation of fins very easy and fast. Underwater replacement of fin is possible

Stabalise & Trim In One Package
Combining the Humphree fin system with Humphree interceptors and you have a full stabilisation system for roll, pitch and yaw motions. For best control and lowest fuel burn. No other stabiliser manufacturer can offer this combined package to provide full vessel stability.

Fin Size
Humphree stabiliser fins are available in 0.4m², 0.6m² & 1m² for vessels from 40ft to 80ft. Multi fin systems can be used for vessels up to and beyond 100ft.
